Plant-Source Memorial Diamonds: From Petals to Heartwood

Plant Carbon vs. Animal Carbon: Structural Chemistry

Animal-derived carbon sources — hair, fur, nails, feathers — share a common primary organic component: keratin, a sulfur-rich fibrous protein. Keratin's carbon backbone is relatively simple, with molecular chains cross-linked by disulfide bonds. During thermal decomposition:

• Pyrolysis onset temperature: ~230°C
• Primary volatiles: sulfides, ammonia, water vapor
• Residual carbon: amorphous, requiring higher graphitization temperatures
• Typical carbon content (dry mass): 30–40%

Plant cell walls, by contrast, are a composite of three polymers: cellulose, hemicellulose, and lignin. This architecture is significantly more complex than keratin:

Lignin's carbon density is the botanical advantage — it is among the highest of any biological polymer. But its complex aromatic structure also demands higher graphitization activation energy. XRD analysis of our graphite precursors shows:

Case 1: Peony Diamond — Floral Carbon Source

Material: Luoyang double-petaled peony petals

Submitted mass: ~80g fresh petals (moisture content ~75%) → ~20g dry mass

Output: 1 round brilliant-cut diamond, 3.0 ct

Cycle: 78 days (+18 days vs. standard 60-day hair-source cycle)

Process notes:

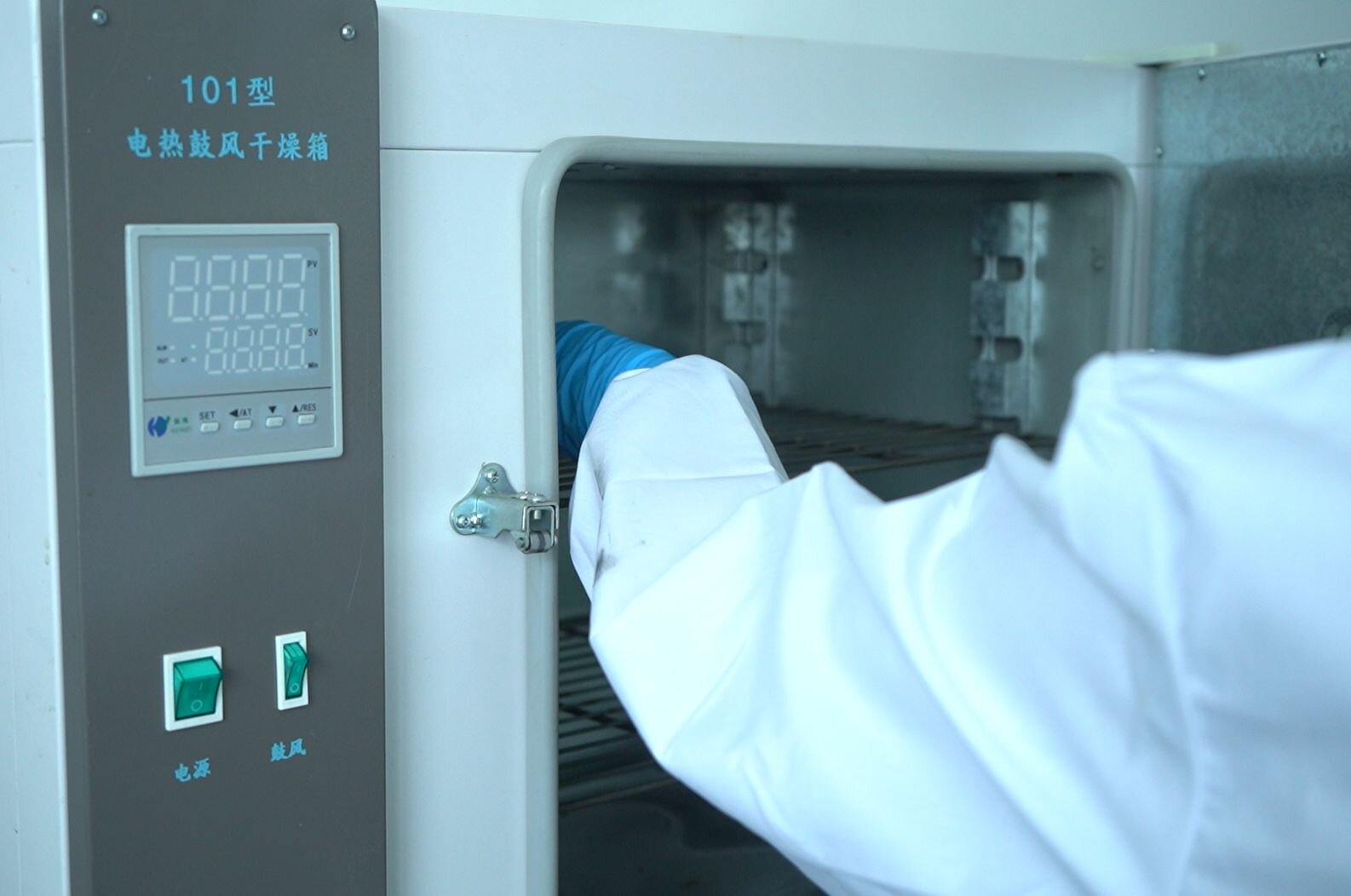

• High petal moisture required low-temperature drying (60°C, 12 hours) before pyrolysis
• Thin cell walls, high cellulose, low lignin — the opposite of optimal botanical carbon
• Carbon extraction rate: ~18% of dry mass (below wood, above most herbaceous plants)
• Color output: F (slightly warmer than hair-source; suspected link to residual plant polyphenols)

Case 2: Banyan Diamond — Deciduous Tree Leaves

Material: Fallen leaves from a ~500-year-old banyan tree, Rongjiang, Guizhou

Submitted mass: 1,200g fresh leaves (moisture content ~60%) → ~480g dry mass

Output: 3 diamonds — 0.5 ct, 0.8 ct, 1.2 ct

Cycle: 89 days (includes sequential batch processing time)

Process notes:

• Autumn leaves show elevated lignin deposition versus fresh foliage — higher carbon density
• Large batch split into 4 pyrolysis runs to avoid reactor overload
• Carbon extraction rate: ~35% of dry mass — the highest among plant sources in this study
• Color output: E–F (comparable to hair-source diamonds)

Case 3: Camphorwood Diamond — Hardwood Heartwood

Material: Taiwan camphorwood (Cinnamomum camphora) heartwood fragments

Submitted mass: ~45g heartwood (moisture content ~15%, air-dried naturally)

Output: 1 cushion-cut diamond, 1.5 ct

Cycle: 65 days (near-standard, +5 days only)

Process notes:

• Lowest moisture content among all four cases — minimal drying overhead
• Camphor (C10H16O) and terpenoid volatiles required a dedicated 150°C pre-burn stage
• Carbon extraction rate: ~42% of dry mass — highest efficiency of any source, plant or animal
• Color output: D–E (exceptional; correlated with high-density lignin in heartwood)

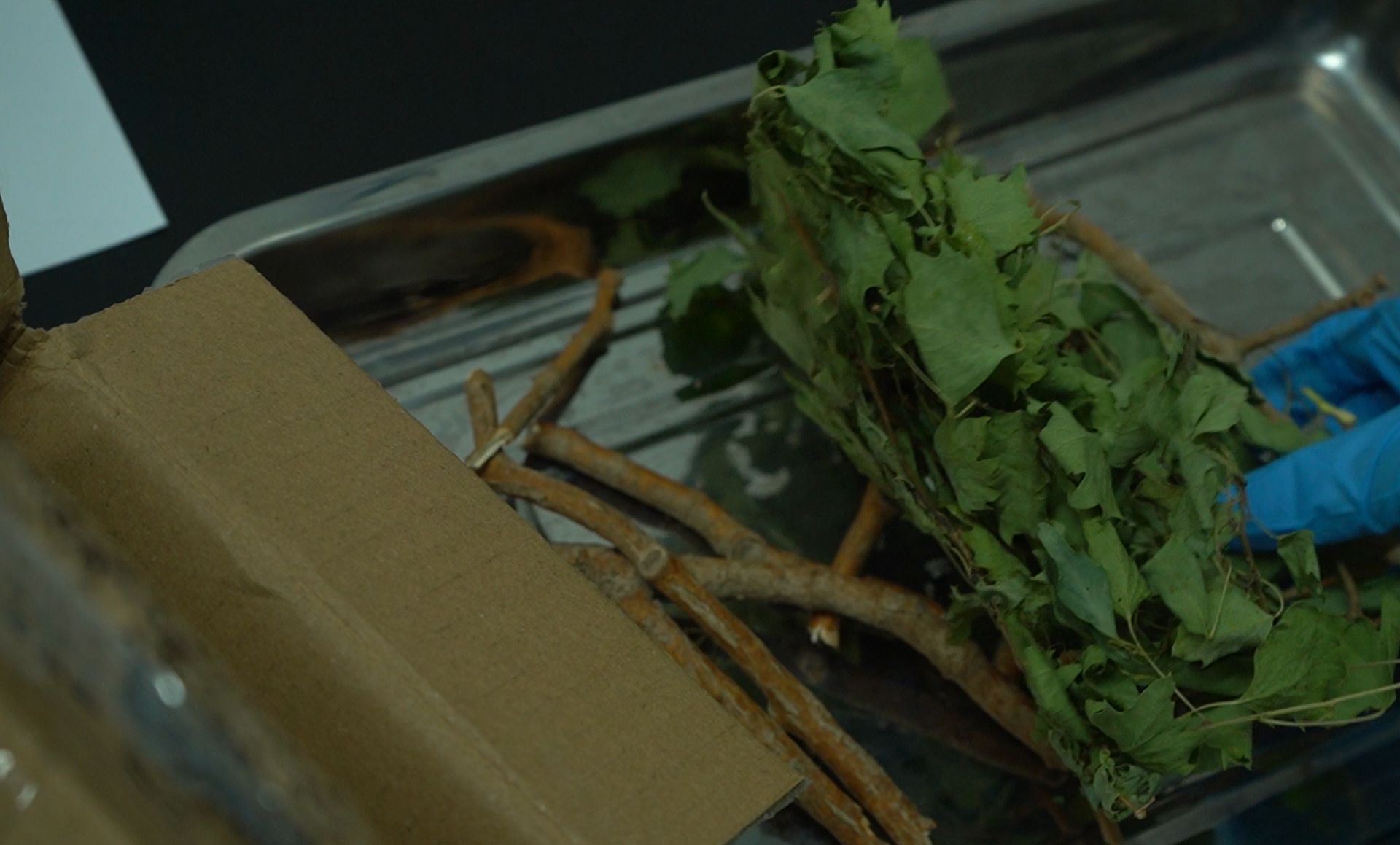

Case 4: Poplar Diamond — Desert Shrub Composite

Material: Xinjiang poplar (Populus euphratica) branches + Alhagi sparsifolia (camel thorn) roots, mixed

Submitted mass: 200g mixed sample (moisture content ~50%)

Output: 1 round brilliant-cut diamond, 0.5 ct

Cycle: 72 days

Process notes:

• Desert plants accumulate higher silica phytolith content; acid wash stage was intensified (HF 5%)
• Poplar (Salicaceae) lignin is G/S mixed-type; Alhagi (Fabaceae) root nodules carried residual nitrogen-fixing bacteria requiring additional sterilization
• Carbon extraction rate: ~28% of dry mass
• Color output: E–F

Universal Technical Challenges in Botanical Processing

Challenge 1: Moisture Content Variability

Botanical samples span an extreme moisture range: flower petals at 70–80%, heartwood at 10–20%. This directly affects carbon extraction efficiency per gram of submitted material. Our standardized intake protocol:

1. 1Initial analysis: Gravimetric moisture determination (105°C, 2 hours)
2. 2Pre-drying: Samples >50% moisture undergo low-temperature drying (60°C, N₂ atmosphere)
3. 3Carbonization: Muffle furnace at 280–350°C, 4–6 hours
4. 4Purification: Acid wash to remove ash; target purity ≥99.95%

Challenge 2: Inorganic Impurities

Plant samples carry significantly more inorganic contamination than animal hair:

Challenge 3: Seasonal Variation

Carbon content and lignin fraction vary seasonally within the same species:

• Spring foliage: High cellulose, low lignin, low overall carbon — suboptimal
• Autumn leaves: Lignin deposition increases carbon density, but sand contamination rises
• Heartwood: Stable year-round; the preferred botanical carbon source when available

We advise partners to collect autumn leaves or heartwood samples where possible, and to avoid spring tender growth.

Sample Size Guide: Plant vs. Animal Sources

Conclusion

Plant-source memorial diamonds are not a downgrade from hair-source production. In certain conditions — specifically hardwood heartwood with high S-lignin content — they can match or exceed the color performance of keratin-derived diamonds. The camphorwood case (D–E color, 42% extraction rate, 65-day cycle) demonstrates that botanical carbon, properly selected and processed, is a first-class feedstock.

The trade-off is predictability. Hair offers consistent 30–40% carbon content and well-understood pyrolysis behavior. Botanical sources span a wider parameter space: 7–42% effective carbon yield depending on tissue type, season, and preparation. For B2B partners, this means sample sizing guidance must be source-specific, not universal.

From peony petals to millennial banyan, from fragrant camphorwood to desert poplar — each botanical source is a materials science experiment. Every batch adds parameters to our carbon engineering database. For partners, understanding these technical distinctions enables more accurate client communication: this is not a generic lab-grown diamond. It is a crystal reconstructed from the carbon atoms of a specific plant, carrying a molecular signature that no other feedstock can replicate.
