Technology & Patents

Core IP

Carbon Extraction Patent

BioGem Lab's proprietary carbon extraction and purification technology is protected under Chinese national invention patent ZL 2010 1 0565778.9, granted in 2012 (Certificate No. 1058820). The patent covers the complete process chain for extracting usable carbon from biological materials — hair, fur, and plant fibers — and purifying it to gem-quality synthesis standards.

This extraction protocol is the foundational differentiator in our manufacturing stack. It enables consistent carbon yield from diverse biological sources while maintaining the purity thresholds required for high-clarity diamond synthesis.

Patent No. ZL 2010 1 0565778.9

Chinese National Invention Patent · Granted 2012

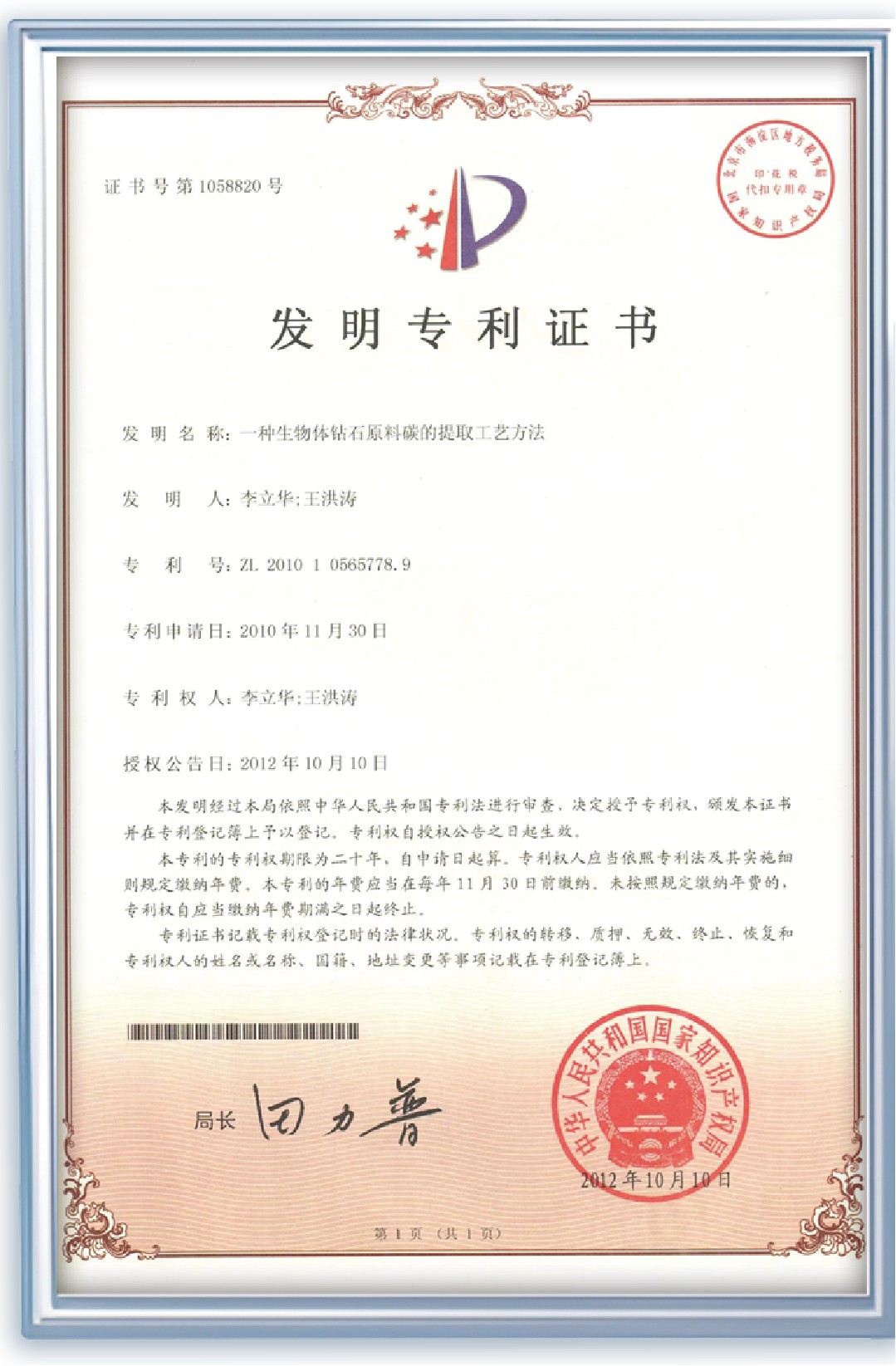

BioGem Lab National Invention Patent Certificate ZL 2010 1 0565778.9

Synthesis Platform

HPHT Diamond Growth

Our industrial HPHT synthesis platform replicates mantle formation conditions with precision-engineered pressure and temperature control for consistent crystal growth.

5.5 GPa

Chamber Pressure

Equivalent to ~150km depth

1,450°C

Growth Temperature

±15°C tolerance window

~60 Days

Standard Cycle

Sample to finished diamond

98.7%

Batch Success Rate

Across 1,247+ cycles

Growth Process Parameters

Catalyst System

Iron-nickel alloy catalyst with optimized carbon solubility. The catalyst dissolves the graphite source and precipitates diamond onto the seed crystal under controlled temperature gradient conditions.

Seed Crystal Selection

High-quality synthetic diamond seeds with minimal defects are selected based on crystallographic orientation. Seed quality directly impacts final clarity and color consistency. Read technical guide

Pressure Calibration

Hydraulic press systems with real-time pressure monitoring maintain 5.5 GPa ±0.2 GPa throughout the growth cycle. Pressure stability is critical for preventing structural defects and inclusions.

Thermal Gradient Control

The growth chamber maintains a controlled thermal gradient of 20–40°C between the carbon source and seed crystal. This drives carbon transport from the dissolved graphite to the growing diamond face.

Carbon sample storage and preparation at BioGem Lab

Purification Pipeline

Carbon Extraction & Purification

The patented carbon extraction process transforms raw biological material into synthesis-ready graphite through a multi-stage purification pipeline. Each stage is monitored by spectroscopic analysis to ensure the 99.95%+ purity threshold is met before graphitization.

01

Sample Reception & Documentation

Unique traceability ID assigned. Sample photographed, weighed, and logged in chain-of-custody system.

02

Pre-Treatment & Cleaning

Removal of contaminants, oils, and non-carbon organic compounds through solvent washing and thermal treatment.

03

Carbon Isolation (Patented)

Proprietary process isolates elemental carbon from keratin and cellulose matrices. Protected under Patent ZL 2010 1 0565778.9.

04

Spectroscopic Purity Verification

In-process analysis confirms carbon purity ≥99.95%. Below-threshold batches are re-processed.

05

Graphitization

High-temperature conversion to crystalline graphite, the direct precursor for HPHT diamond synthesis.

Facility

Laboratory Infrastructure

BioGem Lab operates from a dedicated research and production facility in Luoyang, Henan Province, China. The facility houses HPHT synthesis chambers, carbon purification systems, and gemological grading equipment under a single integrated workflow.

Synthesis Floor

Multiple industrial-grade HPHT presses operating in parallel with automated parameter logging. Growth chambers are calibrated weekly against NIST-traceable standards.

Purification Lab

Controlled-environment carbon extraction and purification workspace. HEPA filtration, positive-pressure airflow, and dedicated solvent handling systems.

Grading Station

Gemological microscopes, spectrophotometers, and laser measurement systems for post-growth 4C grading. CCIC traceability QR code integration at final QC.

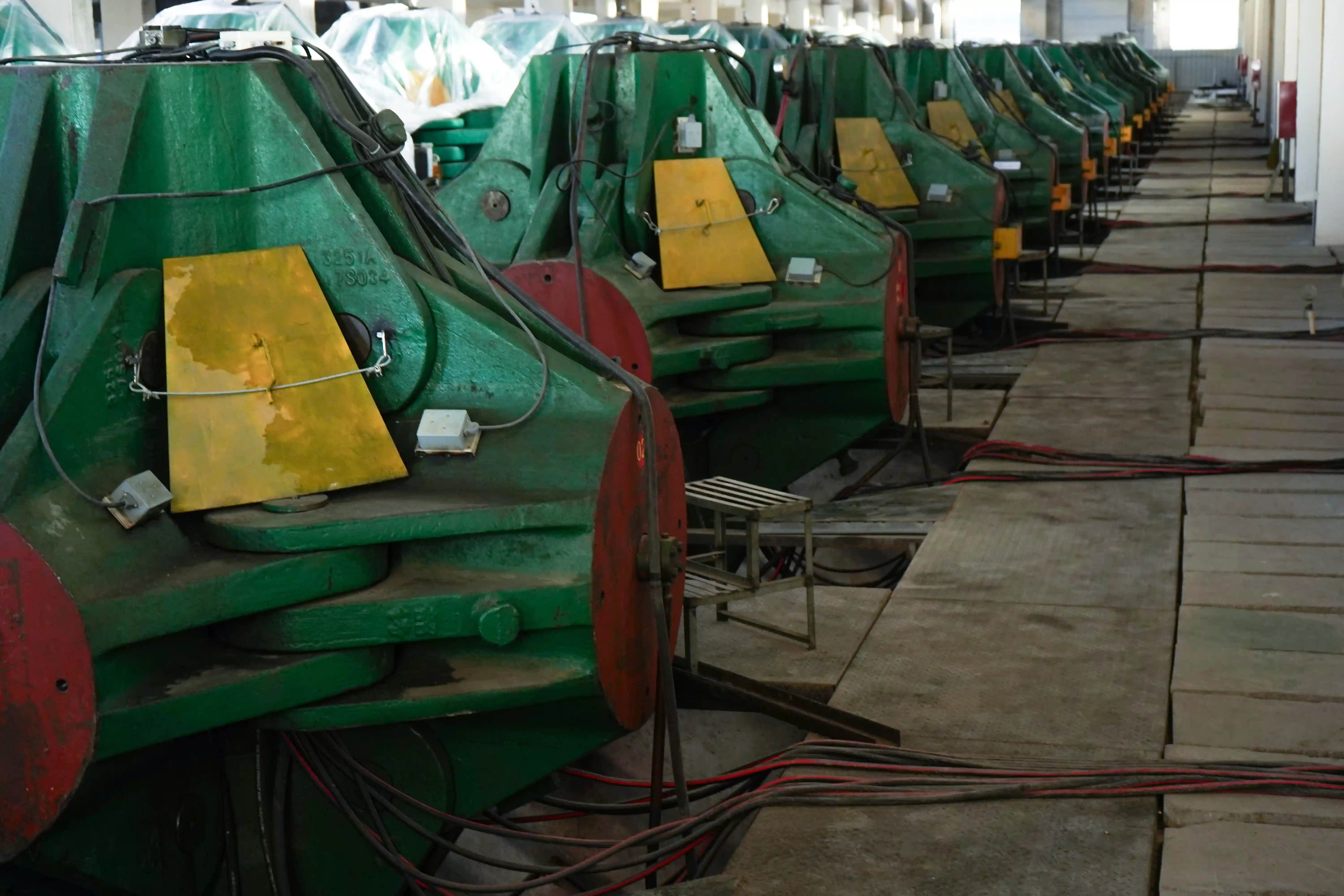

HPHT Synthesis Floor

Multi-press parallel production array

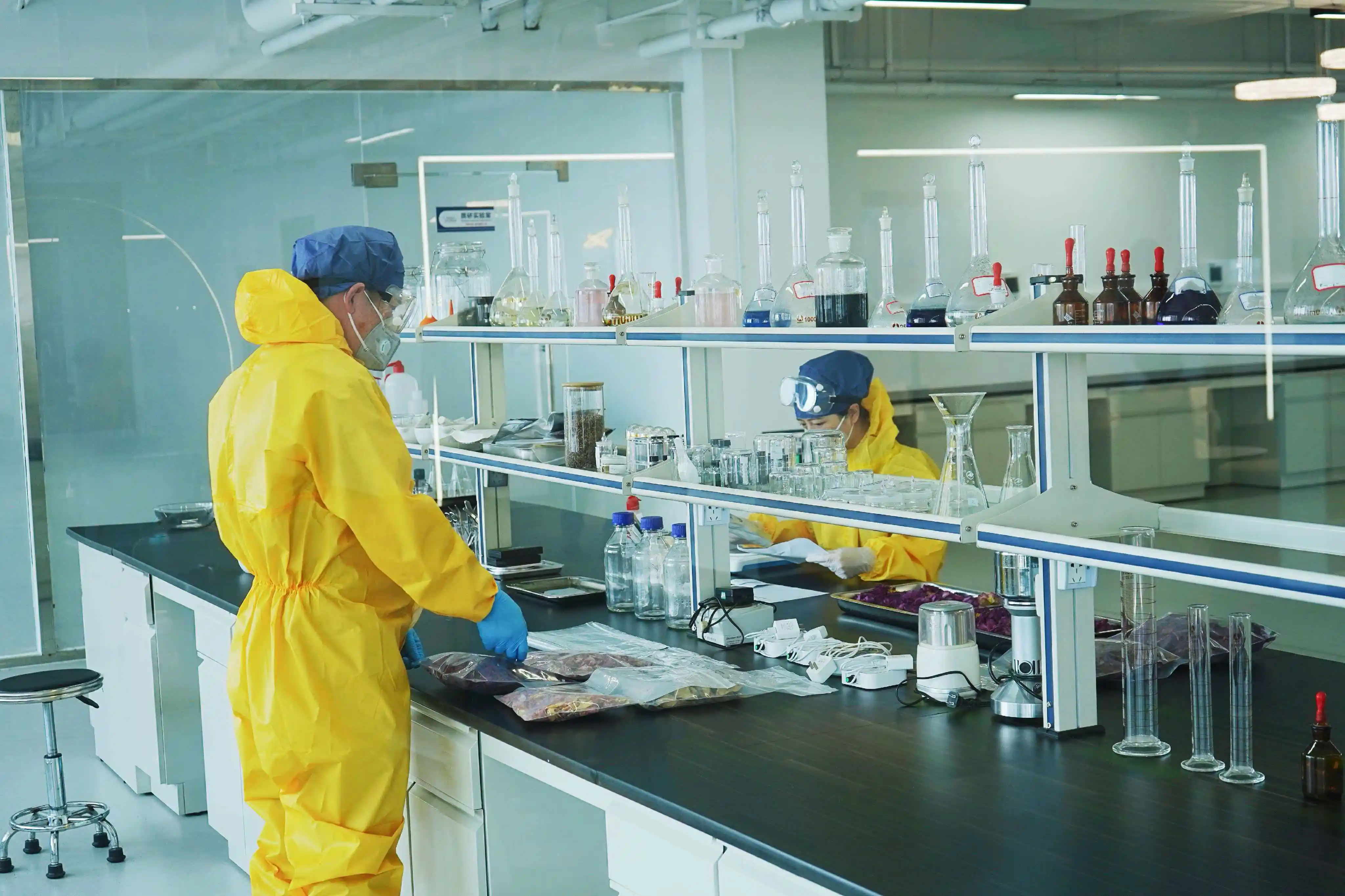

R&D Workbench

Carbon purification and sample preparation

Assurance

Quality Control & Certification

Every production batch undergoes multi-stage quality control. Finished diamonds are graded using the same 4C criteria as mined diamonds and certified by internationally recognized gemological institutions.

QC Checkpoints

Carbon Purity: Spectroscopic verification ≥99.95% before graphitization
Growth Monitoring: Real-time pressure, temperature, and power logging
Post-Growth Inspection: Visual and UV fluorescence screening
Gemological Grading: 4C assessment (Carat, Color, Clarity, Cut)
Traceability Assignment: Unique CCIC QR code linked to production records

Certification Options

CCIC / ILDA (Standard)

Included at no extra cost. 4C grading report with traceability QR code.

IGI (Optional Upgrade)

International Gemological Institute full grading report. +$100–$300 per diamond.

GIA (Optional Upgrade)

Gemological Institute of America grading report. +$250–$400 per diamond.

Third-party certificates (IGI/GIA) are issued by the respective laboratories and cannot be customized with partner branding.

Partner With Proven Technology

White-label memorial diamond manufacturing with patent-backed carbon extraction and industrial HPHT synthesis. No MOQ. Global shipping.

View Partnership Program Contact Our Team

Reply within 24 hours · No commitment required
